Small Space News Story Roundup 37

Because it can be hard to find much on the weekend...

NASA and Boeing Find Deeper Problems with Starliner

Not that they seem willing to put the launch off because of them.

Senior managers have said they intend to launch Starliner's Crewed Flight Test on June 1 at 12:25 PM EDT, as noted in the addendum to Wednesday the 22nd's post. Since the first scrubbed attempt to launch Starliner, there has been weeks of detailed analysis of a helium leak and a "design vulnerability" with the ship's propulsion system.

Extensive data reviews over the last two-and-a-half weeks settled on a likely cause of the leak, which officials described as small and stable. During these reviews, engineers also built confidence that even if the leak worsened, it would not add any unacceptable risk for the Starliner test flight to the International Space Station, officials said.

But engineers also found that an unlikely mix of technical failures in Starliner's propulsion system—representing 0.77 percent of all possible failure modes, according to Boeing's program manager—could prevent the spacecraft from conducting a deorbit burn at the end of the mission.

"As we studied the helium leak, we also looked across the rest of the propulsion system, just to make sure we didn't have any other things that we should be concerned about," said Steve Stich, manager of NASA's commercial crew program, which awarded a $4.2 billion contract to Boeing in 2014 for development of the Starliner spacecraft.

I love precision like "0.77% of all possible failure modes"! Such confidence! Such respect for significant digits!

Question for any of you with lots of "probability and statistics" course work: how many trials would be needed to have high confidence it's more like 1% chance instead of a 5% chance? How many to determine it's more like 1% than a 10% chance? I assume that if it's really a 5 or 10% chance given some large number of trials, the failure would happen more often than if it was a 1% chance. How many to distinguish a 0.77% chance from a 1% chance? I'm betting on the order of tens thousands of trials. From a system that's going to fly maybe 10 times. Maybe.

I found the entire article unsettling but while I'm not a "belt and suspenders" guy, I'm not a test pilot either. There's a Robert A Heinlein quote (I think it was RAH) about test pilots; something like they'd jump off a building with rubber soles if you gave them odds of surviving it.

Butch Wilmore and Suni Williams, still in pre-flight medical quarantine, will return to Florida on Tuesday to resume final launch preparations. NASA officials will call a flight test readiness review Wednesday, and if they give the green light, ULA will roll the Atlas V rocket and Starliner spacecraft back to the launch pad on Thursday, May 30.

Starship FT-4 Set for Wednesday, June 5 at 8:00 AM EDT

In a Friday announcement, SpaceX has set a June 5 launch date for its next Starship integrated test flight, with a focus on demonstrating the ability to bring both stages of the vehicle back intact. The mission details seem like what we covered on Tuesday, 5/21.

“The fourth flight test turns our focus from achieving orbit to demonstrating the ability to return and reuse Starship and Super Heavy,” the company stated. “The primary objectives will be executing a landing burn and soft splashdown in the Gulf of Mexico with the Super Heavy booster, and achieving a controlled entry of Starship.”

The company has made several upgrades to both the Super Heavy booster and the Starship itself, based on their failure analysis of Flight Test 3.

SpaceX said that Starship “began losing the ability to control its attitude” several minutes after engine shutdown, while coasting on a suborbital trajectory. Video of the flight showed the vehicle slowly rolling. That loss of attitude control led to an automated decision not to perform a planned engine relight.

“The lack of attitude control resulted in an off-nominal entry, with the ship seeing much larger than anticipated heating on both protected and unprotected areas,” SpaceX stated, with telemetry lost at an altitude of 65 kilometers.

The company believes the attitude control issue was caused by the clogging of valves in thrusters used for roll control. SpaceX has added more thrusters for redundancy while upgrading thruster hardware “for improved resilience to blockage.”

The booster fired 13 of its 33 Raptor engines after separation for a boostback burn, but six of the engines began shutting down, triggering an early termination of the boostback burn. Only two of 13 engines ignited for the final landing burn.

The engine failures, SpaceX concluded, were caused by filter blockage in liquid oxygen lines, keeping propellant from reaching the engines. SpaceX experienced similar problems on previous Starship launches and made changes to the engine design to try to prevent it. “Super Heavy boosters for Flight 4 and beyond will get additional hardware inside oxygen tanks to further improve propellant filtration capabilities,” SpaceX said, along with unspecified “additional hardware and software changes” to improve the reliability of Raptor engine startup.

Another interesting little change they've made is to jettison the interstage adapter they added to allow igniting the upper stage before the booster separates.  They will still have that adapter in place but the way I read that, they'll drop the interstage adapter once the booster separates.

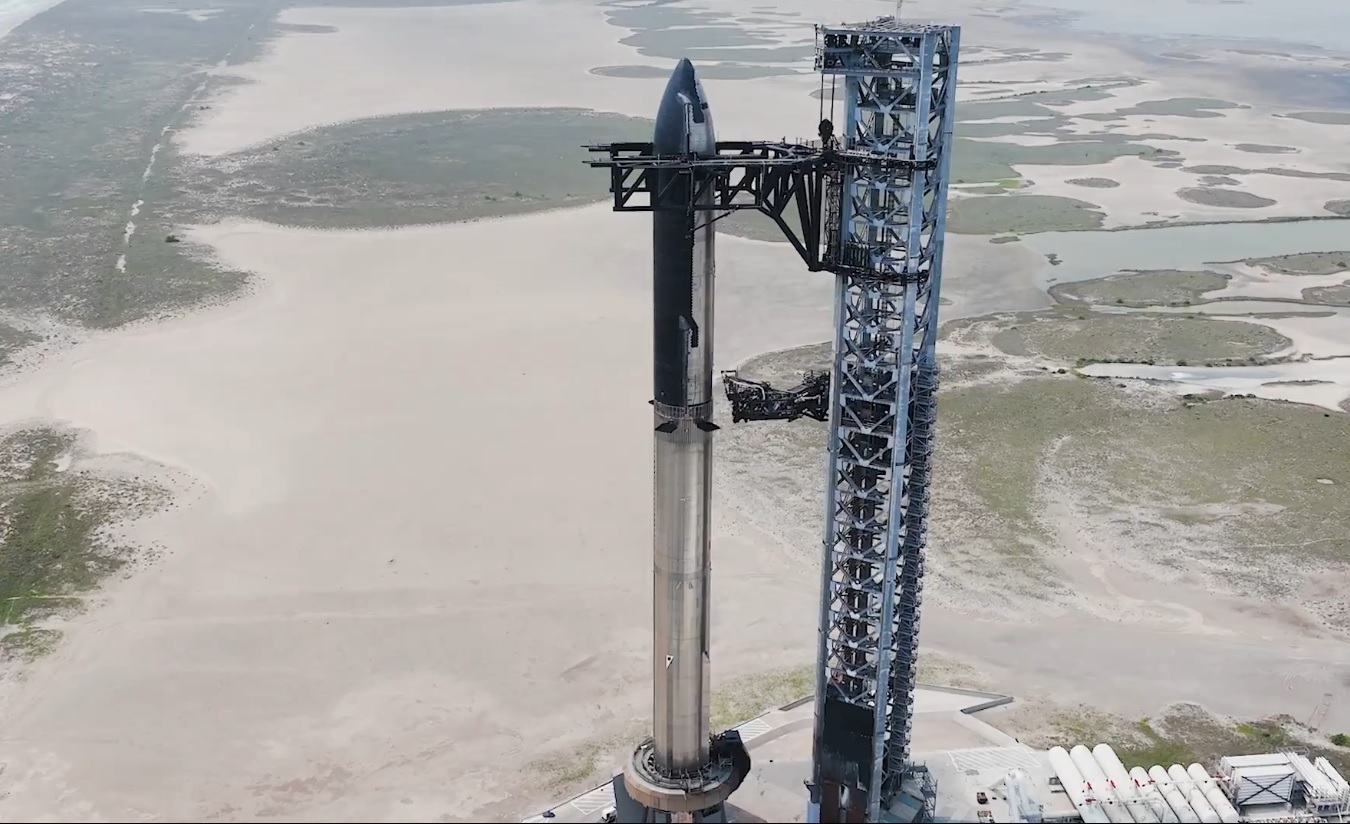

Booster 11 and ship 29, the Flight Test 4 hardware, stacked for the May 15 WDR. Screen capture from SpaceX video posted on X.
