Sunday, December 5, 2021

Weekly Update on the 1 by 1 - part 17

After last week's post, a few commenters said I shouldn't do the approach I outlined.  To borrow a vivid quote from Wandering Neurons (first comment as Anonymous):

Dollars to donuts, as soon as your mill hits that bar edge from the side, or the forces are the least bit uneven, the square bar will rotate out of the V-blocks and bounce around the room violently. More pressure from your vice jaws will only increase the bounce!

In my mind that bounce will likely be into something either expensive, hard to repair, or irreplaceable.  Probably painfully me.  So it was back to the drawing board.

I had already made my alternate vise jaws by that time, so I had two options: first would be to grab the block by the ends and cut down the pointed ridge with movements along the Y-axis.  The vise is just not quite big enough to handle the rough piece.  The second option would be to put the square blank in the vise along the X axis, clamped more securely, and try to chamfer it.  Unfortunately, I don't have a chamfer cutter, but I do have a large countersink (3/4" diameter) for metal cutting.  It cuts an 82 degree angle, and while I'd rather have a 90 degree countersink so that I cut a 45 degree chamfer this is rough cutting just to get rid of extra material and I think I can live with a 41 degree angle instead of a 45.

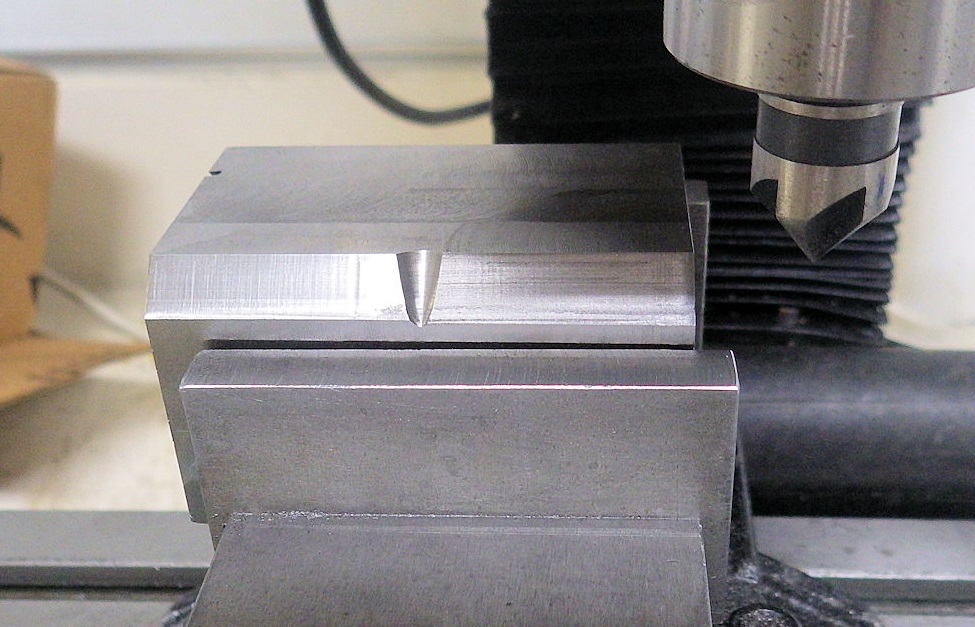

I decided to try the second approach and went off to make a test cut.  While making that cut the cutter slipped in the mill's collet and made a deep divot.  I was noticing that the cut was getting deeper toward the left in this view.  I was milling right to left (climb milling here) and the face that had been cut was definitely wider on the left.  It took embarrassingly long before I realized it must be the cutter slipping in the collet, took a quick look and saw that was going on.  I hit the emergency stop button on the computer which stops the axis from moving but not the spindle motor and then raised the cutter out of contact.  That divot you see got cut in the few seconds it took to stop the CNC, decide what to do, command it to raise the cutter and hit return.

I don't think it's too deep, but frankly don't care.  The finished cylinder is going to look like this (except for some holes I haven't drawn in, yet).  If one or two cooling fins have a divot, it's a "don't care."

The  square section on the left is 1.75" on a side, the same as the diameter of the finned portion.  The finished length is 2.375" and my rough is now 3.25" long, so I have 7/8 of spare for the lathe chuck to grab.  That 3.25" is also 1/8" longer than my vise will open to.  I could probably spare that 1/8" so that I could clamp the blank on the ends.  I'm just not sure how I'm going to make this thing.

Unfortunately, the cut was done last Monday and I haven't had the time to get back into the shop since then.  What's that stuff about having no limits on time available once you're retired?  No need for a watch, no need for an alarm, all you need is to know when to nap and when to get up?  Sure hasn't been the case for me.


  1. Does cutting the bevel all the way along the length of the stock also cut off the corner of the square bottom flange of the cylinder?

    Seems like milling to a 1.80" rectangle, putting it in the lathe in a four jaw with a center on the free end and cutting the cylindrical portion of it, fins and all up to the square shoulder, then remove the center and put the free end in a steady rest to bore, all without moving the part. Then flip it around in the chuck,and cut the little cylinder extension to the other flange shoulder and cut to length, using a steady if it can't go far enough into the chuck to be stable.
    Then put it in the mill and clean up the square to 1.75"

    1. Yeah, I took off the corner of that flange.

      As I was posting this last night, I realized I had screwed the pooch on that.

      I have enough left of the cast iron bar that I had to order to start over, so it's not a terrible inconvenience, but still annoying.

      I was thinking about putting it in the lathe and cutting the left side of that picture first but I think it really doesn't matter much. As long as I basically follow what you say of turning part it of cylindrical with a dead or live center, then once it's turning smoothly, put the steady rest on.

  2. That stuff about no limits to time when retired? Pure, unadulterated hogwash. I have more to do than I ever did, and the time windows to accomplish things get shorter and shorter as my feet/knees/wrists and so forth and etcetera decay.

    The end of this journey is lying in bed wondering if you can move your tongue, so my philosophy is live life as large as you can until you faceplant. To hell with pain, take more Advil. To hell with waiting until next year, do it now. If you want to take a hike on the beach, do it! If you want to build a giant barbeque, do it!

    It's no wonder old farts are considered selfish...

    1. Absolutely. I would add to your statement about this journey ending, "lying in bed wondering if you can move your tongue" is that you never know when that's going to happen, regardless of your age. Could be in 30 years, could be tomorrow.

      I've got a friend who's retired Army. My age so retired from the Army more like 20 years ago than my 6 years. He says he never wore a watch again. I still wear a watch, and I still set alarms.

      He's still active, still doing things, just says he doesn't wear a watch.

    2. I haven't worn a watch, set an alarm clock, or worn a tie since I "retired".
