What do I mean by "convenient breaking point"?  Do you recall me mentioning adding a different optical sensor to my CNC lathe, with the ultimate goal of having that do all my little threading jobs?  I've spent the time since then modeling and then making the parts to make it happen.  I changed the approach I was planning to use; instead of mounting the sensor on a metal bracket attached to the lathe headstock, I've moved the mounting to the plywood base the lathe sits on.  Today, I completed all the parts and test mounted them.  The real mounting, wiring, and getting it all working starts after the break, possibly Saturday.  (A description of the disk, the sensor (in turquoise) and how this all works was back in late October.  Third paragraph up from the end.)


The lathe and all the parts on it were a CAD model I got from somewhere long ago (like 2004 or '05).  Every dimension I've checked is accurate, and now I need to double check dimensions on a piece or two of mine because it ends up being too short and interfering with something.


This is a test fit.  I'll use it to mark up the bottom of the flat-bottomed U-shaped piece and the plywood to mount this to the plywood base.  Then starts the wiring and the process of convincing the controller software to do what I want.

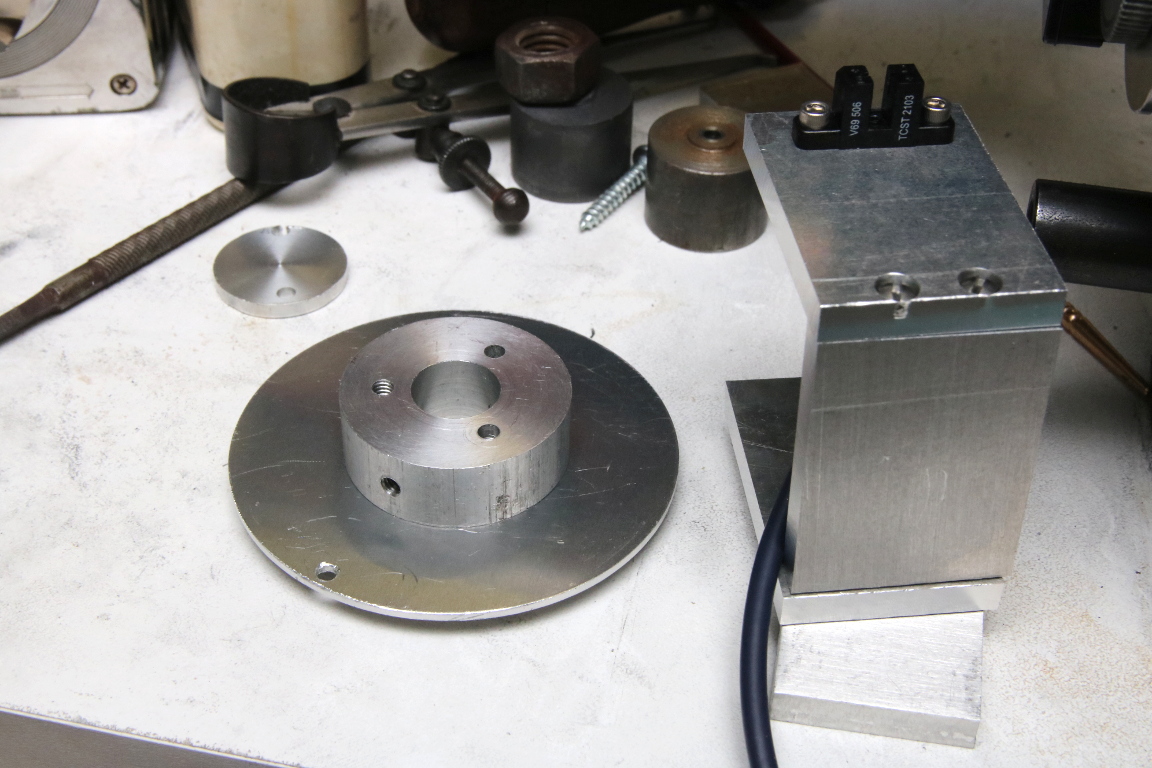

All five of the pieces together.  The large U bracket was done on the big mill while the two rotationally symmetric parts were done on the micro mill rotary table.  To hold the hub and disk (left) on the small rotary table, required a special tool that I had to make yesterday


Ignore the two short cylinders at the top of this frame.  Those are a graphite and a cold rolled steel version of the pistons for my Duclos flame eater engine.  Just extra pars (junk) now.
